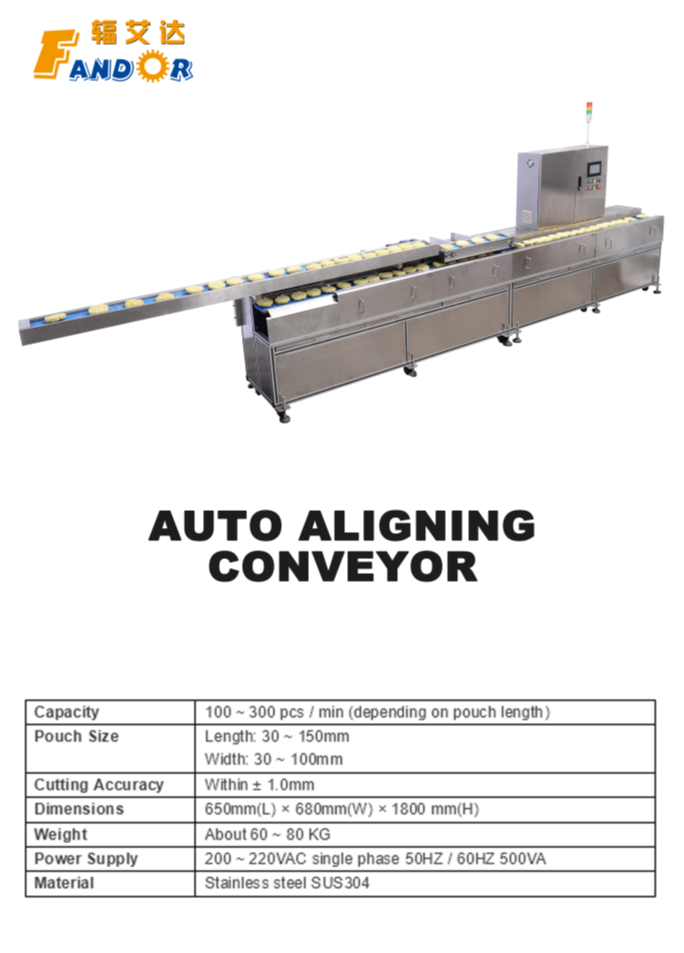

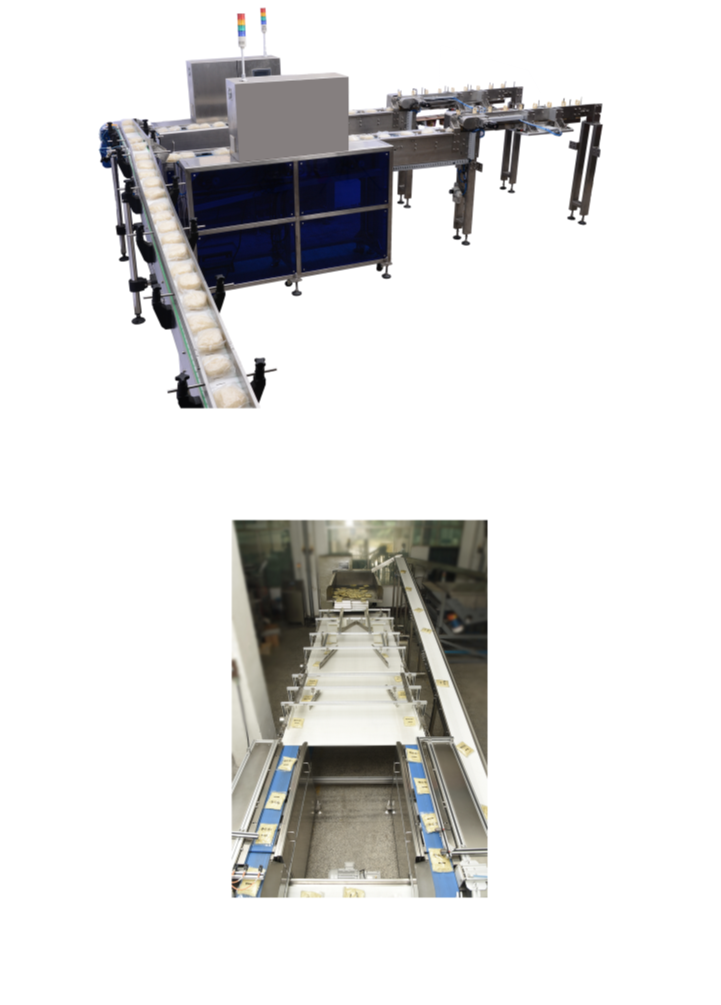

Auto Aligning Conveyor
Specification| Capacity | 100-300 pcs/min (depending on pouch length) |
| Pouch Size | Length 30 ~ 150mm Width 30 ~ 100mm |
| Cutting Accuracy | Within +- 1.0mm |
| Dimensions | 650mm(L) x 680mm(W) x 1800 mm(H) |
| Weight | About 60 ~ 80 KG |
| Power Supply | 200 ~ 220VAC single phase 50HZ / 60HZ 500VA |
| Material | Stainless steel SUS 304 |

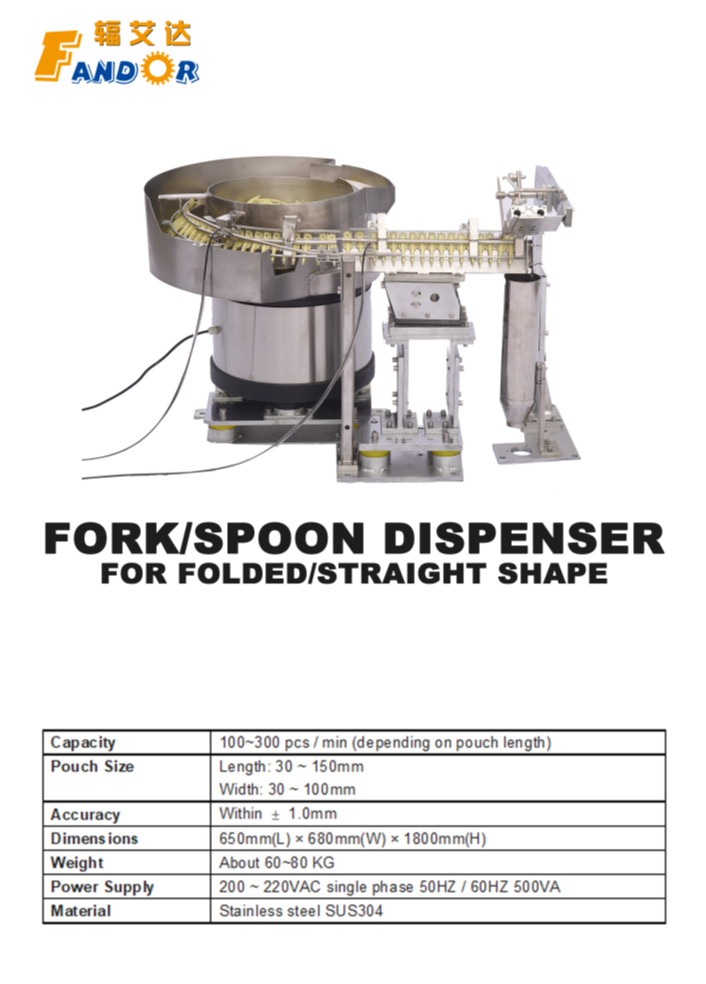

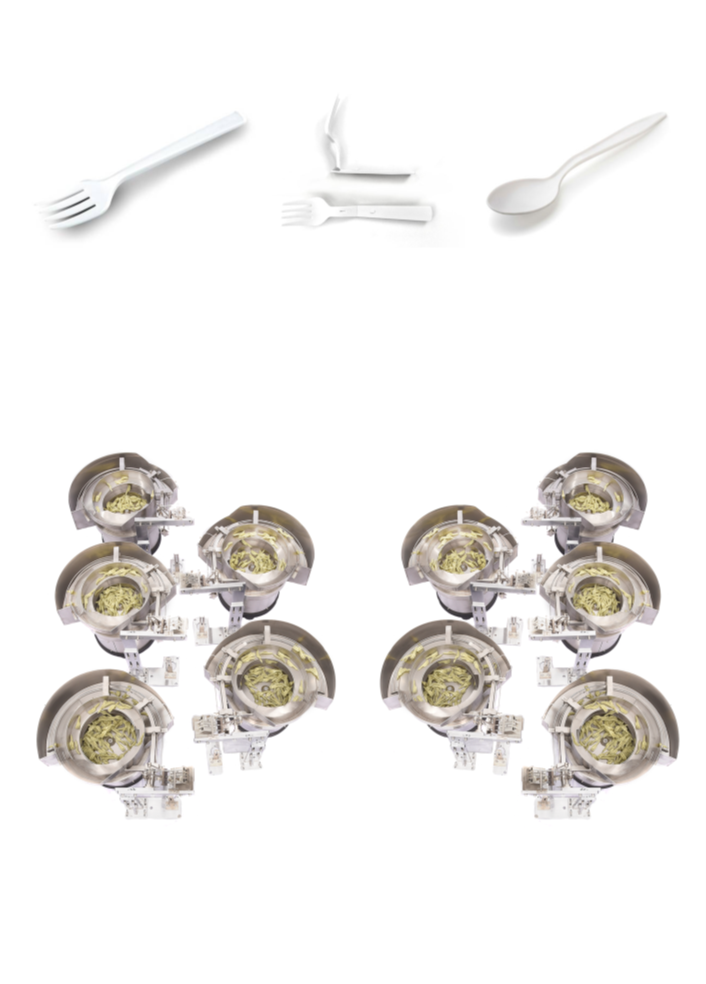

Fork/Spoon Dispenser
Specification| Capacity | 100-300 pcs/min (depending on pouch length) |
| Pouch Size | Length 30 ~ 150mm Width 30 ~ 100mm |
| Cutting Accuracy | Within +- 1.0mm |
| Dimensions | 650mm(L) x 680mm(W) x 1800 mm(H) |
| Weight | About 60 ~ 80 KG |
| Power Supply | 200 ~ 220VAC single phase 50HZ / 60HZ 500VA |
| Material | Stainless steel SUS 304 |

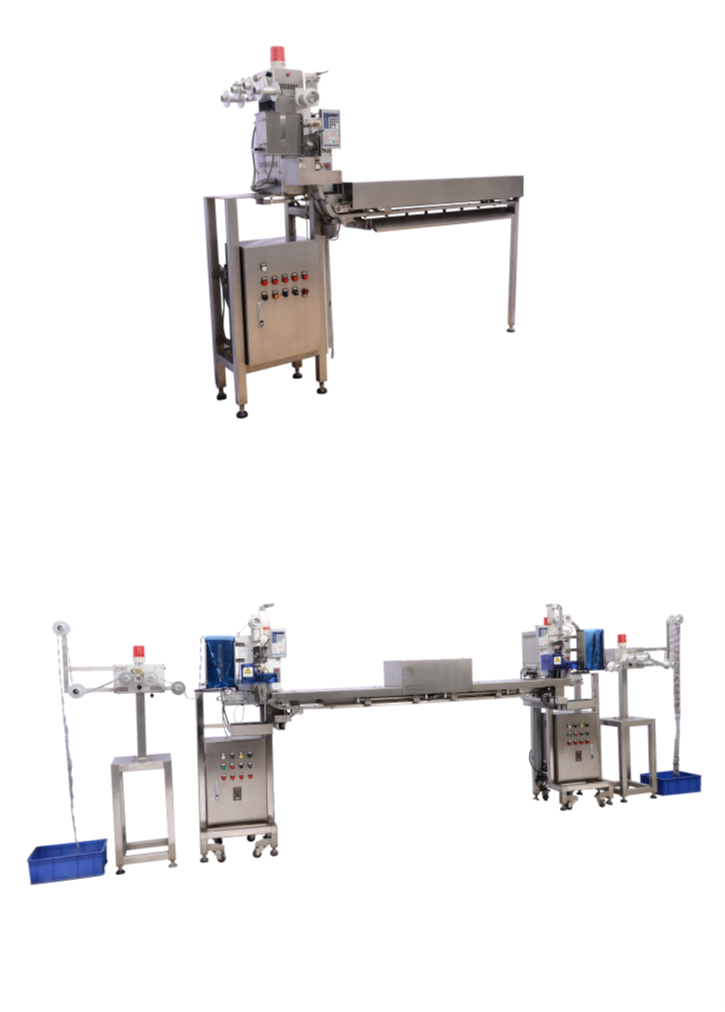

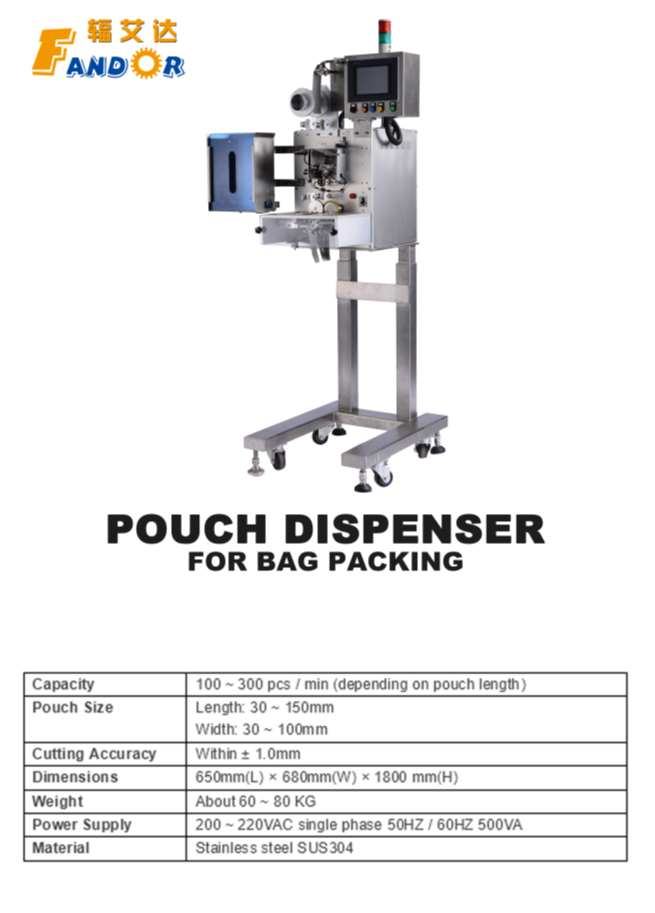

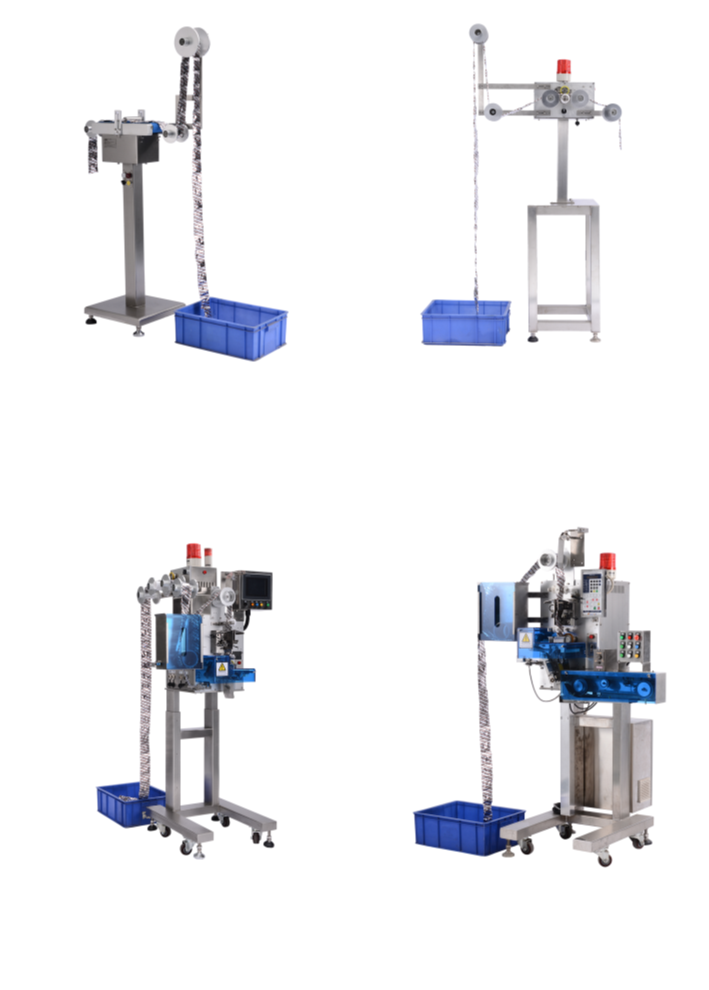

Pouch Dispenser for Bag Packing
Options
1. Belt-type feed unit (installed on the upper floor)
2. Guide wheel-type feed unit(installed on the upper floor)
3. Conjoined feed unit
4. Sunchronous feed unit (for high speed stability)
| Capacity | 100-300 pcs/min (depending on pouch length) |
| Pouch Size | Length 30 ~ 150mm Width 30 ~ 100mm |
| Cutting Accuracy | Within +- 1.0mm |
| Dimensions | 650mm(L) x 680mm(W) x 1800 mm(H) |
| Weight | About 60 ~ 80 KG |
| Power Supply | 200 ~ 220VAC single phase 50HZ / 60HZ 500VA |
| Material | Stainless steel SUS 304 |

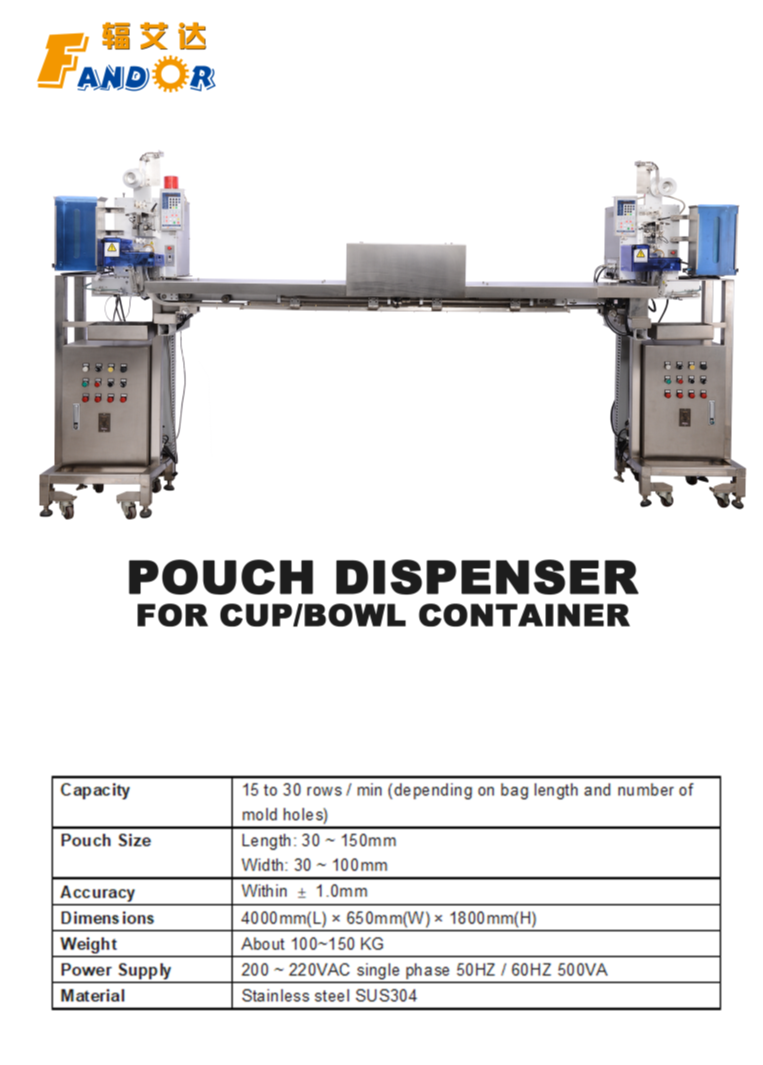

Pouch Dispenser for Cup/bowl Container
Specification| Capacity | 15 to 30 rows/min (depending on bar length and number of mold holes) |
| Pouch Size | Length 30 ~ 150mm Width 30 ~ 100mm |
| Cutting Accuracy | Within +- 1.0mm |
| Dimensions | 400mm(L) x 650mm(W) x 1800 mm(H) |
| Weight | About 100 ~ 150 KG |
| Power Supply | 200 ~ 220VAC single phase 50HZ / 60HZ 500VA |
| Material | Stainless steel SUS 304 |

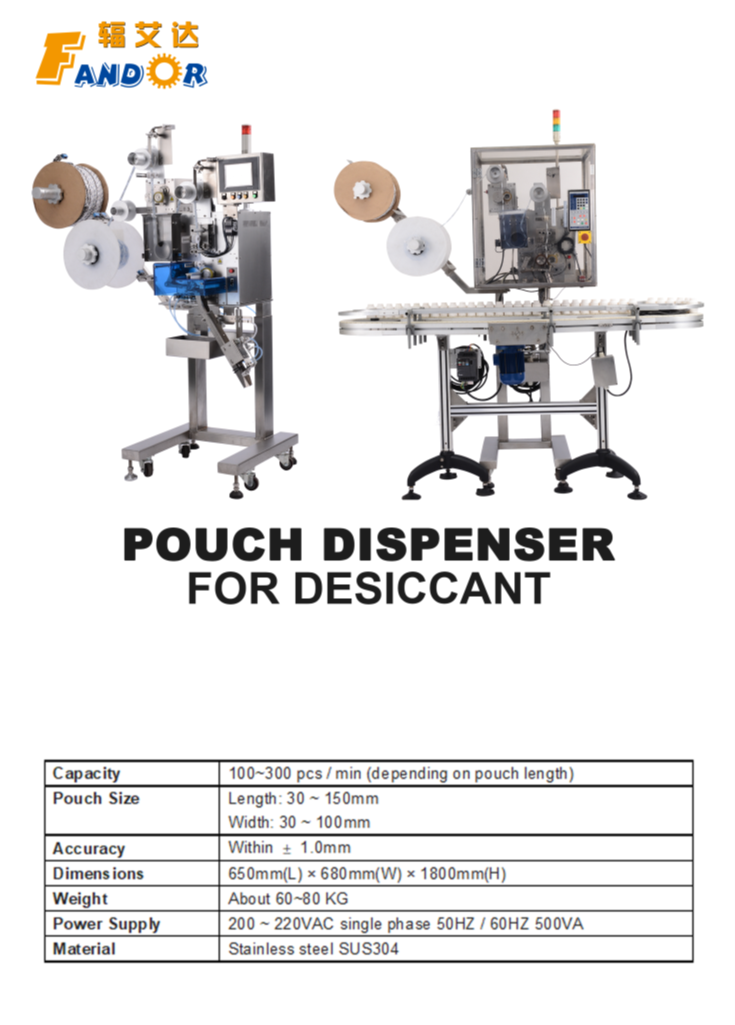

Pouch Dispenser for Desiccant
Specification| Capacity | 100 to 300 pcs/min (depending on pouch length) |
| Pouch Size | Length 30 ~ 150mm Width 30 ~ 100mm |
| Cutting Accuracy | Within +- 1.0mm |
| Dimensions | 400mm(L) x 650mm(W) x 1800 mm(H) |
| Weight | About 60 ~ 80 KG |
| Power Supply | 200 ~ 220VAC single phase 50HZ / 60HZ 500VA |
| Material | Stainless steel SUS 304 |

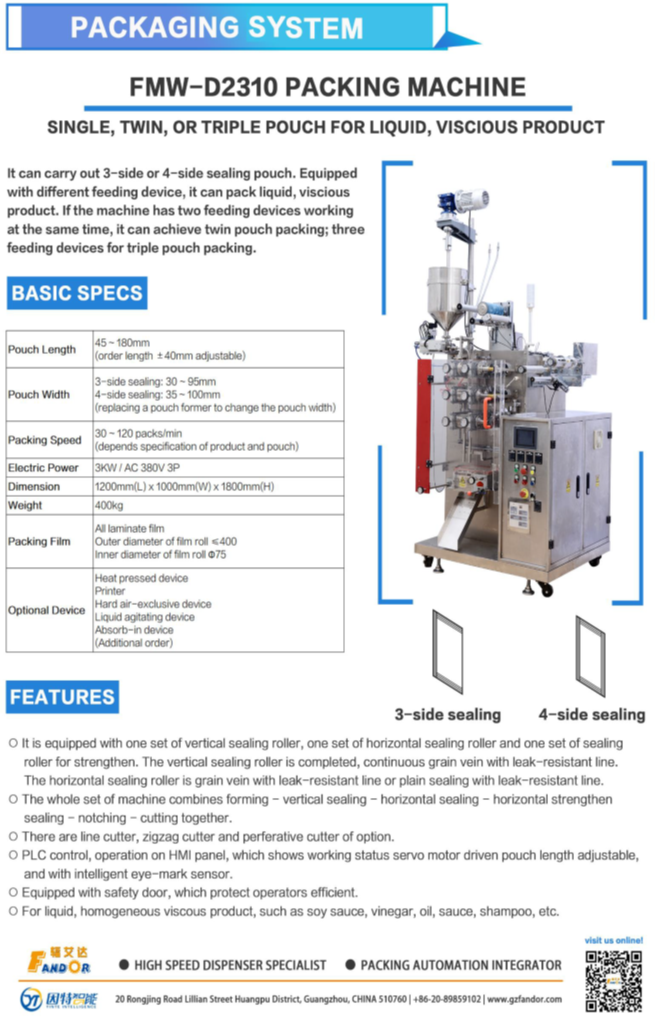

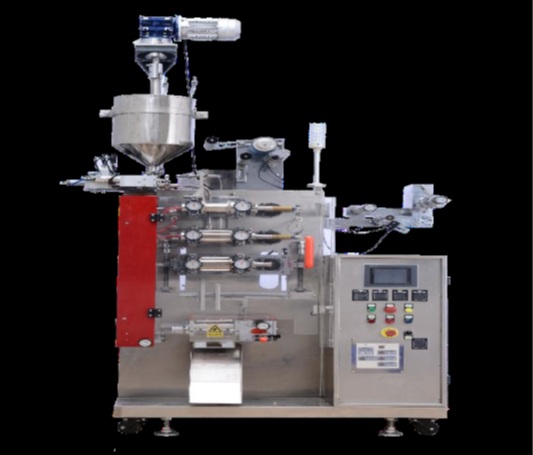

FMW-D2310 Packing Machine
It can carry out 3-side or 4-side sealing pouch. Equiped with different feeding device, it can pack liquid, viscious product. If the machine has two feeding devices working at the same time, it can achieve twin pouch packing; three feeding devices for triple pouch packing.
Specification| Pouch Length | 45 to 180 (order length +- 40mm adjustable) |
| Pouch Width | 3-side sealing: 30~95mm 4-side sealing: 35~100mm |
| Packing Speed | 30 ~ 120 packs/min (depends specification of product and pouch) |
| Dimension | 1200mm(L) x 1000mm(W) x 1800 mm(H) |
| Weight | 400kg |
| Electric Power | 3KW/AC 380V 3P |
| Packing Film | All laminate film Outer diameter of film roll<400 Inner diameter of film roll 75 |
