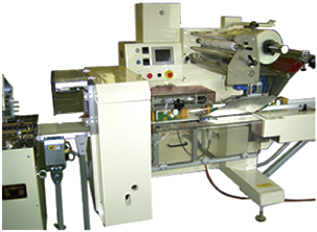

A compact shrink flow wrapper to shrink wrapping each kind of containers. This wrapper has caster wheel as standard for easy handling.
Features
- With half machine length compare to other Tokiwa wrappers, it is able to be installed in limited space.
- Excellent operation by standard 12 inch large sized color touch panel.
- Up to 99 items data installation.
- Easy to move its location by caster wheel and socket type power cable.
| Target Item | Each Type of Containers (Bottles, Tubes, Jars) |
| Packaging Speed | Max. 50 pack/min (depend on kind of items and wrapping material) |
| Standard Spec | Touch Panel Operation / Item Data Installation Up To 99 Items |
| Maximum Film Width | 450mm |
| Power Consumption | Three Phase 200V 4.5kw (without shrink tunnel) |

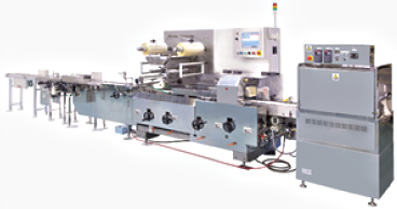

Products to be wrapped from preceding process are fed onto roller pool conveyor. The autofeeder divides the products one by one and fed onto infeed conveyor, then stretch wrapped.
| Target Item | Frozen Noodles, Other Frozen Food |
| Packaging Speed | Max. 120 pack/min (depend on kind of items and wrapping material) |
| Main Motor | 200V 750W (AC Servo) 3 Units |
| Maximum Film Width | 450mm |
| Power Consumption | Three Phase 200V 12.0kw |

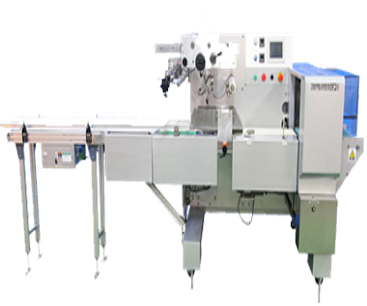

Servo control technology. Adaptive Endseal cut position for height different product.
Features
- NEO model is high end machine series. It has the best performance and machine specifications. It is able to operated without manual by its microcomputer.
- This machine is able to do automatic wrapping with printed film. Also, it can cost down with non-printed film.
- Its safety and operation are improved during setup with individual stop switch to stop Endsealer as a pre-installed option.
| Target Item | Aerosol Cans, Bowl Noodles, etc. |
| Packaging Speed | Max. 300 pack/min (depend on kind of items and wrapping material) |
| Main Motor | 200V 750W (AC Servo) 3 Units |
| Maximum Film Width | 580mm |
| Power Consumption | Three Phase 200V 5.5kw (without shrink tunnel) |
Accurate registration control with soft printed shrink film(N strap film) automatically
Features
- It is cost effective and less material consumption machine using self-adhesive multi-color printed shinny shrink film that makes available non-printed tray at lower cost.
- Less machine trouble with no Longsealer equipment and easy film roll change by cradle type film holder and infeed conveyor without pushing lug are additional feature.
- Safe manual infeed operation with pusherless infeed conveyor.
| Target Item | Food on plastic tray, etc. |
| Packaging Speed | Max. 100 pack/min (depend on kind of items and wrapping material) |
| Main Motor | 200V 750W (AC Servo) 3 Units |
| Maximum Film Width | 580mm(CP1-515SUD) |
| Power Consumption | 3-Phase 200V 4.5Kw (Shrink tunnel not included) |
| Target Item | Sake Pack 60 degree to 90 degree |
| Packaging Speed | Max. 30 pack/min (depend on kind of items and wrapping material) |
| Main Motor | 200V 750W (AC Servo) 3 Units |
| Maximum Film Width | 560mm |
| Power Consumption | 3-Phase 200V 4.0Kw (Shrink tunnel not included) |
