Packaging Machinery

Packaging Machinery

Shrink Wrap Machine

All series of Heat Shrink Packaging Machine are designed to match requirement of different sizes, working speed & fan speed. Machine works stably with different model for users' production capacities & sizes. The machine can be customized to fit user's production requirement.

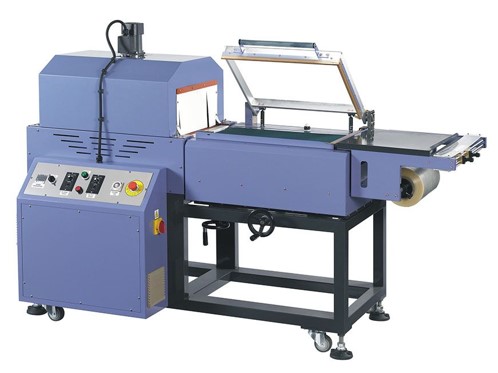

Semi-Auto L-Type Sealer, LTS-504

  • Semi-Auto L-Type Sealer, LTS-504 is designed for varied products with low capacity. It is suitable for industry of pharmacy, stationery and gifts…etc. The most characters of this machine is made of 2 in 1 design. Its dimension is compact & easy operation to work both sealing & shrinking on same machine. User can run the machine with only connecting power with magnet to seal well. Also compressed air is not required. There are 2 options of sealing functions i.e. instant heating wire & constant heating knife; furthermore, conveyor belt is adjustable with different height for multiple sizes packaging.
  • Features
  • - Instant heating seal makes machine work immediately without waiting temperature increasing.
  • - Packaging size change quick & easy.
  • - Sealer & heat tunnel are combined with simple mechanism for easy maintenance.
  • - Machine has compact dimension, good for utilization of any working space.
Specification
Power: 3Ø 220V 50/60HZ
Machine Dimension: 2172x W:800 x H:1378 (m/m)
Sealing Bar Length: 500 x 400 (m/m)
Heater: 4.2 (KW)
Packaging Capacity: 15 (Boxes/Min)

Semi-Auto L-Type Sealer, LTS-504

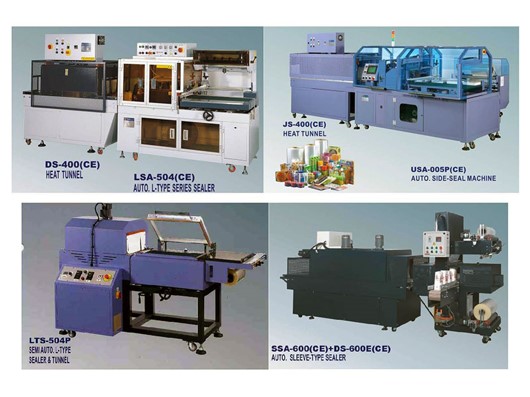

Fully Auto L-sealer, LSA-504

  • Fully Auto L-sealer, LSA-504 is adjusted easily for size change. It can run multiple package to help promotional purpose. The sealing cutter is installed safety & alarm system to protect worker.
  • The individual pin wheels design can help shrink wrap well. There are many options of working features to be available such as Kissing Conveyor, Changeable Sealing Height, Hi-speed Sealing…etc.
  • Features
  • - Machine adopted constant heat cutter, which has strong & clean seal without polluted gas.
    - The sensor & timer work together to control sealing length automatically.
    - Total 2 set of vertical & horizontal sensors can be switched to work any shape of products perfectly, even thin & small size.
    - Machine is adjusted easily for size change. It can run multiple package to help promotional purpose.
    - POF is environmental friendly. It is only recommended to run with LSA-504.
Specification
Power 1Ø 220V 50/60HZ
Machine Dimension 1730 x 910 x 1380 (m/m)
Sealing Bar Length 550 x 450
Max. Package Height 5 - 120 (m/m)
Heater 1.3 (KW)
Motor AC25 x 1, AC40 x 1, AC60 x 2, AC15 x 1
Packaging Capacity 20 - 25 (Boxes/Min)
Air Pressure Required 5.5 (80psi) KG/cm²
Fully Auto L-sealer, LSA-504

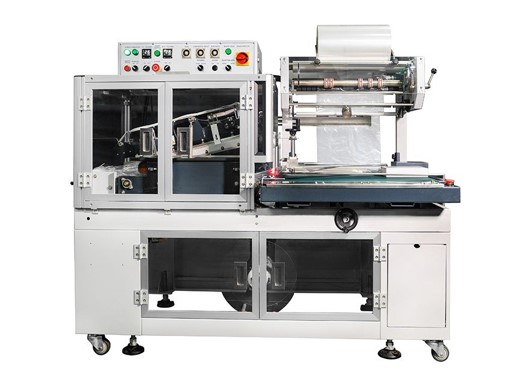

LSA 706

Fully Auto L-sealer, LSA-706A control system adopted PLC & HMI with counting & alerting features, easy maintenance. It has strong sealing line, which is thin & good look. The sealing cutter is installed safety & alarm system to protect worker.

  • Features
  • - LSA-706A control system adopted PLC & HMI with counting & alerting features, easy maintenance.
  • - LSA-706A adopted constant heat forged bronze sealing knife, which has long life, strong & clean seal without polluted gas.
  • - Total 2 set of vertical & horizontal sensors can be switched to work any shape of products perfectly, even thin & small size.
  • - It is easy to change packaging size on feeding belt. The quick positioning design can save changing time without needing replacement of jig or former.
Specification
Power: 3Ø 220V 50/60HZ
Machine Dimension: 2420 (L) x 1830 (W) x 1760 (H) (m/m)
Sealing Bar Length: 750 x 650 (m/m)
Heater: 1.7 (KW)
Packaging Capacity: 15 (Boxes/Min)
Max. Package Height: 10 - 260 (m/m)
Sealing Bar Length: 750 x 650 (m/m)
Air Pressure Required: 5.5 (80psi) (KG/cm²)
LSA 706

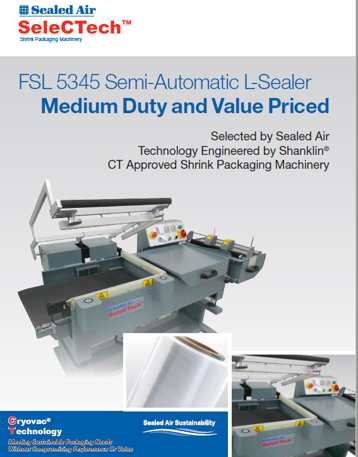

FSL 5345 Semi-Automatic L-Sealer
Medium Duty and Value Priced

- Selected by Sealed Air
- Technology Engineered by Shankin
- CT Approved Shrink Packaging Machinery

FSL 5345

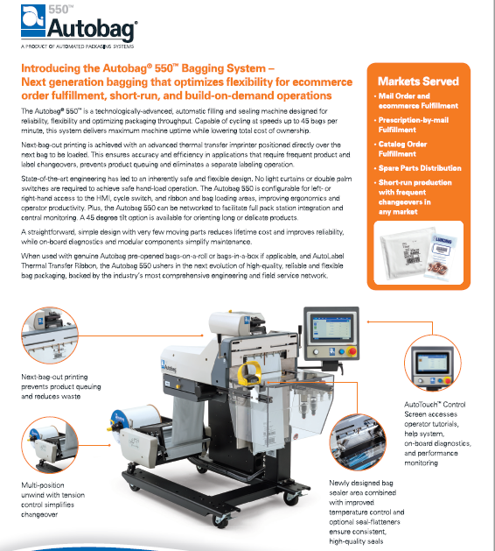

Autobag 550 Bagging System

The Autobag 550 bagger is a technologically-advanced, automatic filling and sealing machine designed for reliability, flexibility and optimizing packaging throughput. Capable of cycling at speeds up to 45 bags per minute, this system was designed to maximize machine uptime while lowering total cost of ownership.

Features

- Next-bag-out printing prevents product queuing and reduces waste
- Simple changeover
- Consistent, high-quality seals
- Control screen accesses operator tutorials, help system, on-board diagnostics, and performance monitoring

Specification
Power Consumption: 1500 Watts (VA) max
Machine Dimension: 37.6"W x 64.5"D x 37.1"-47.1"H
Electrical: 110V to 240V VAC, 50/60 Hz
Air: 5 CFM/80 psi of clean, dry air
Weight: 390 lbs (176 kg)
Autobag 550 Bagging System

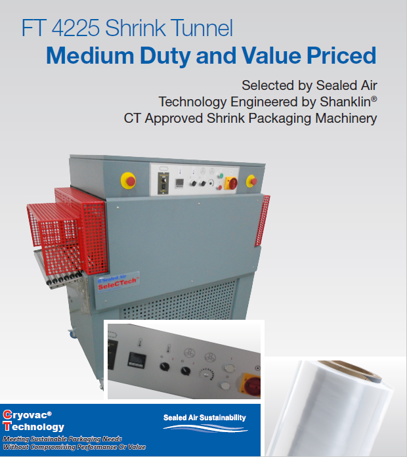

SeleCTech™ FT 4225

The SeleCTech™ Model FT 4225is the economically priced, medium production shrink wrappingtunnel. It’s perfectly partneredwith the SeleCTech™ FSL 5345semi-automatic L-Bar sealerand when partnered with theSeleCTech™ FAL 5645 the combination of the two machineseliminates access to the tunnel’s infeed conveyor improving operator safety.

Features

- Simple, dependable design
- Adjustable temperature control
- Adjustable belt speed
- Hinged gravity assisted product discharge idler rollers

Specification
Chamber Size (mm) L x W x H: 1000 x 420 x 250
Floor Space (mm) L x W x H: 1200 x 670 x 1290
Package Speeds: Up to 20 packs per minute
Conveyor Speeds: 0 ~ 30 m/min (0 ~ 98 ft/min)
Power Requirements SLCT-FT4225 (CE): 3 Phase, 400 V, 13 A, 11 KW, 50 HZ, (with neutral)
SeleCTech™ FT 4225

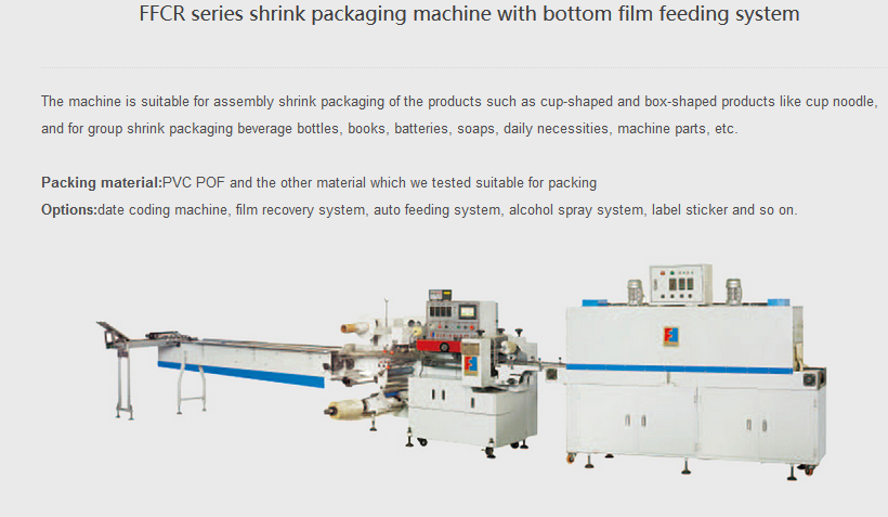

FFCR Series Shrink Packaging

The machine is suitable for assembly shrink packaging of the products such as cup-shaped and box-shaped products like cup noodle and group shrink packaging beverage bottles, books, batteries, soaps, daily necessities, machines parts, etc.

Packaging Material

PVC POF and the other material which we tested suitable for packing.

Options

Date coding machine, film recovery system, auto feeding system, alcohol spray system, label sticker and so on.

FCR Series

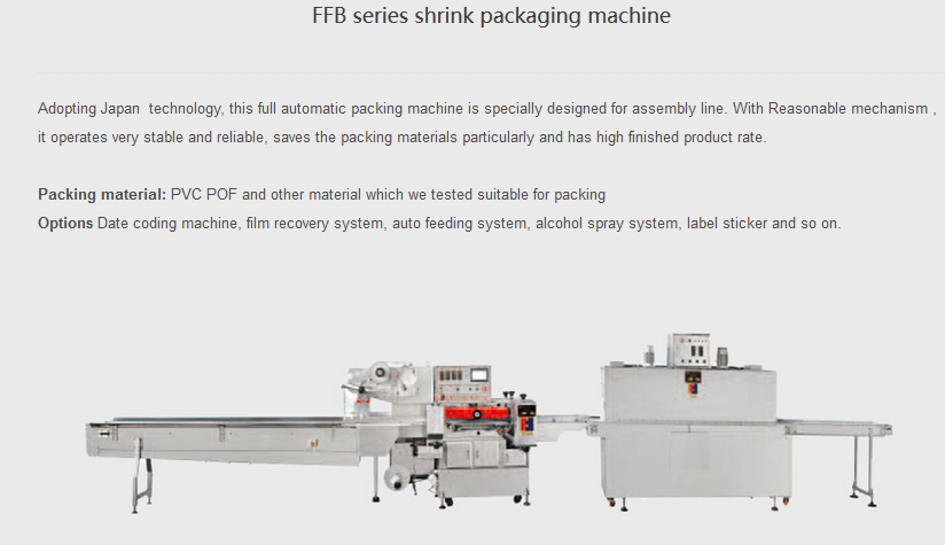

FFB Series Shrink Packaging

Adopting Japan technology, this full automatic packing machine is specially designed for assembly line. With Reasonable mechanism, it operates very stable and reliable, saves the packing materials particulary and has high finished product rate.

Packaging Material

PVC POF and the other material which we tested suitable for packing.

Options

Date coding machine, film recovery system, auto feeding system, alcohol spray system, label sticker and so on.

FFB Series

FFB-S Series Shrink Packaging

A new type of packing machine manufactured by Feifan, FFB-S is the equipment for shrink packing widely used in the area of dairy, chemical and daily articles. It is developed based on the side sealing packing machine. This model makes the sealing at the side of the packing product so that end sealing and longitudinal sealing shaped formation U. This kind of sealing doesn't effect the printed design on the film and also avoid the easy broken of vertical sealng, make the package be more beutiful.

Packaging Material

PVC POF and the other material which we tested suitable for packing.

Options

Date coding machine, film recovery system, auto feeding system, alcohol spray system, label sticker and so on.

FFB-S Series
